CPU GPU Communication
GPU is just another peripheral
In all other peripherals, CPU does the data processing and uses the corresponding driver to send data payload to the hardware. In case of GPU, the CPU via the GPU driver, sends the actual compiled code that the GPU must execute and return back
For the inference application running on CPU, the GPU calls are just asynchronous IO calls. This is exactly same as how an application waits for an external HTTP request to return.
GPU interrupts the CPU when there a token is ready to be streamed and the inference application is woken up to process it.
GPU is a general purpose device which is also used for AI and ML tasks. It can also be used for video rendering tasks. Whereas a TPU is purely for AI and ML tasks.
The GPU and its memory regions are connected via high bandwidth lines. This is necessary for the GPU to copy large amounts of data to and from its registers. This the memory bandwidth that's referred to in hardware specifications.
Communication
It's important to understand that GPU is just another peripheral for CPU. All concepts such as device drivers, interrupt handlers apply to GPU as well.

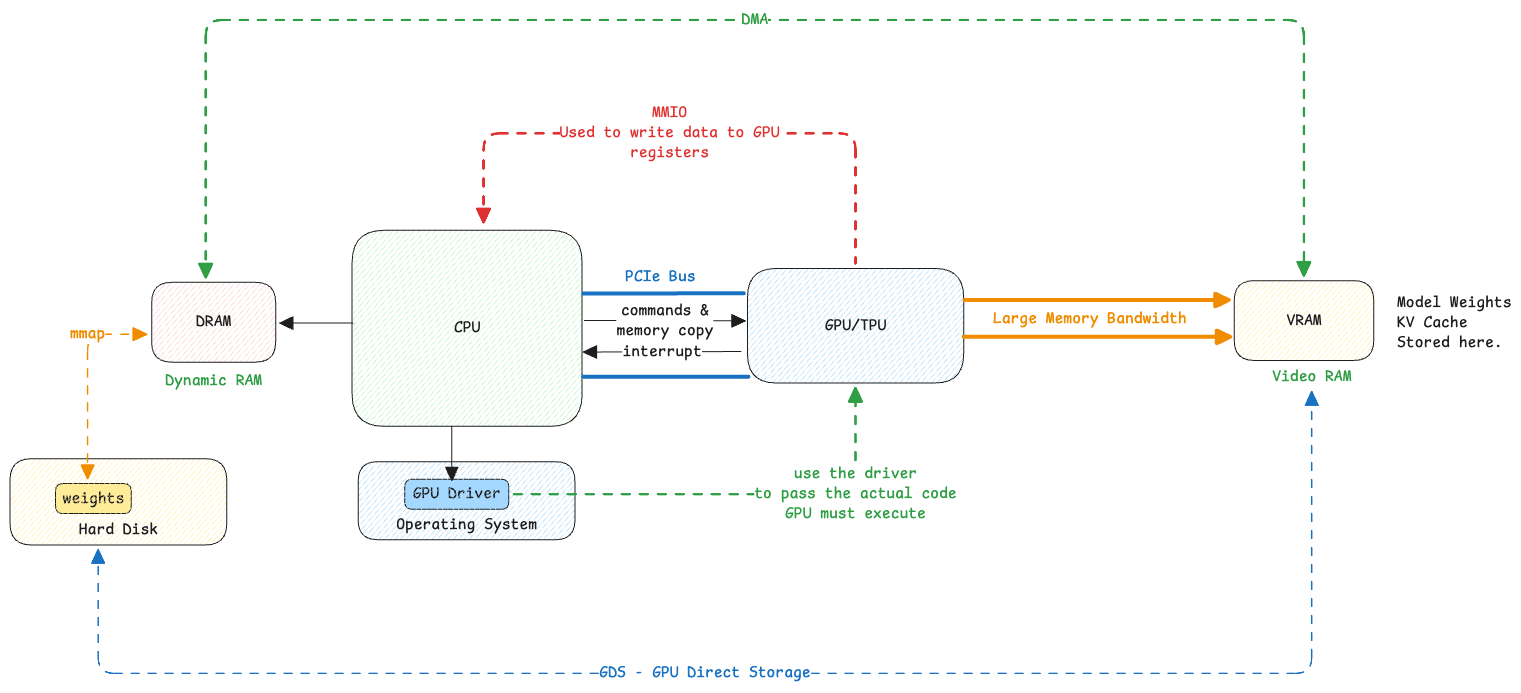

The following modes of communication is possible between GPU and the CPU.
- MMIO - Used to directly write data to GPU's registers.
- mmap - used to move data from disk into the CPU's RAM without having to load entire weights file at a time.
- PCIe - Used to send requests to GPU. Data is copied to registers and then tasks are handed over on these addresses.
- GDS - GPU Direct Storage used to copy data into GPU memory without touching CPU RAM at all.
