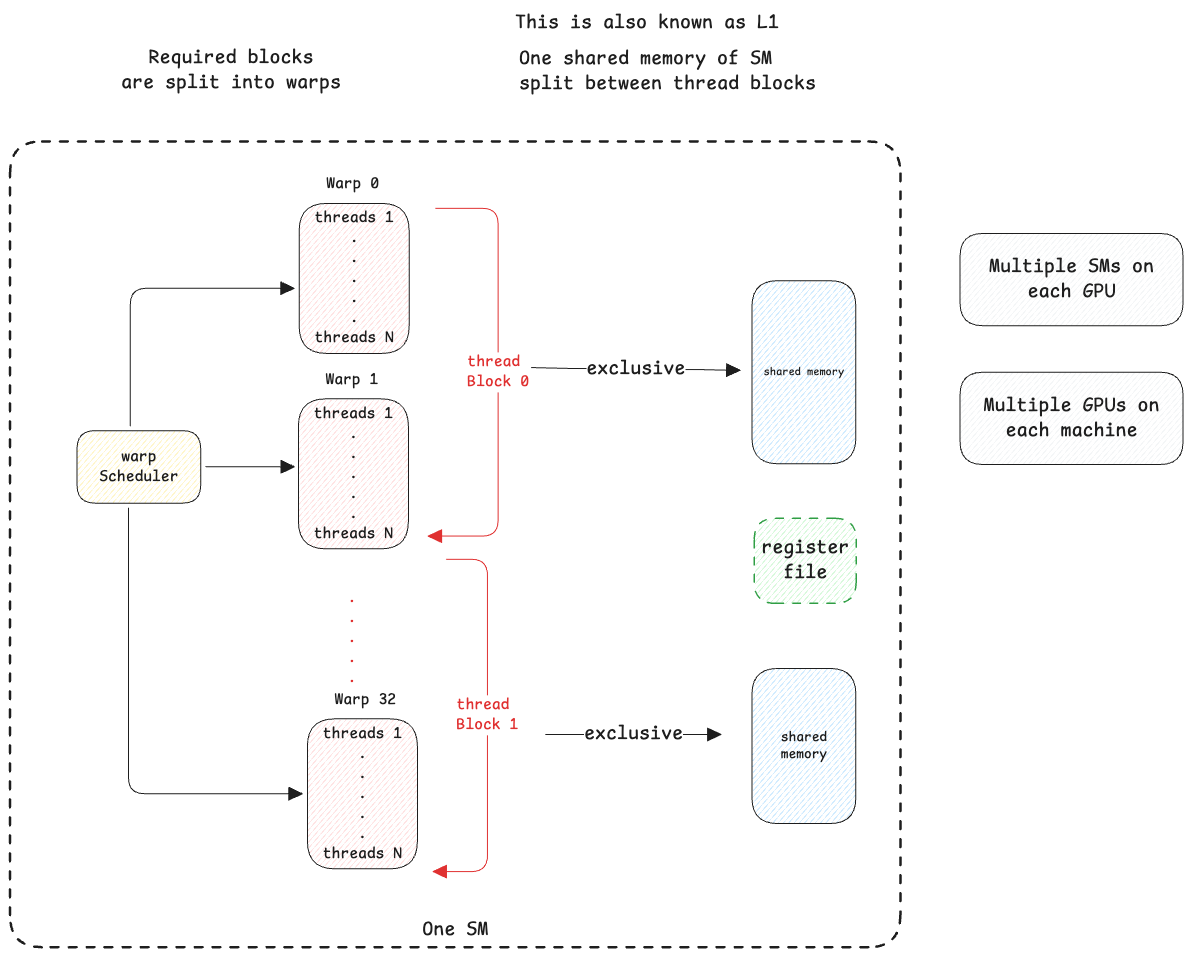

GPU Components

1. SM - Streaming Multiprocessor is the compute unit on the GPU. It has multiple cores and shared memory.
2. Register file - It's the shared register on the SM.
3. Shared Memory - It's shared at thread block level. It's used to share data between threads on the same block.

Meaning of warp?

Warp is part of the weaving machine. It's the vertical threads that are stationary. Through these vertical threads, the horizontal threads are woven to create a fabric.

This is exactly what happens in GPU as well. Warp is a group of threads. All threads in a warp execute the same instruction always but each thread works on different data.

Memory Levels in a GPU

1. Global Memory - HBM/VRAM
2. GPU Caches
3. Shared Memory
4. Register Files

Thread block and block are same

These two terms are used interchangeably in GPU programming. Both mean the same.

Register Files

All threads on the same SM share the same register file. The register file is divided into multiple banks. Each bank can be accessed independently. Whenever thread switching happens, unlike CPU the registers must not be copied out.

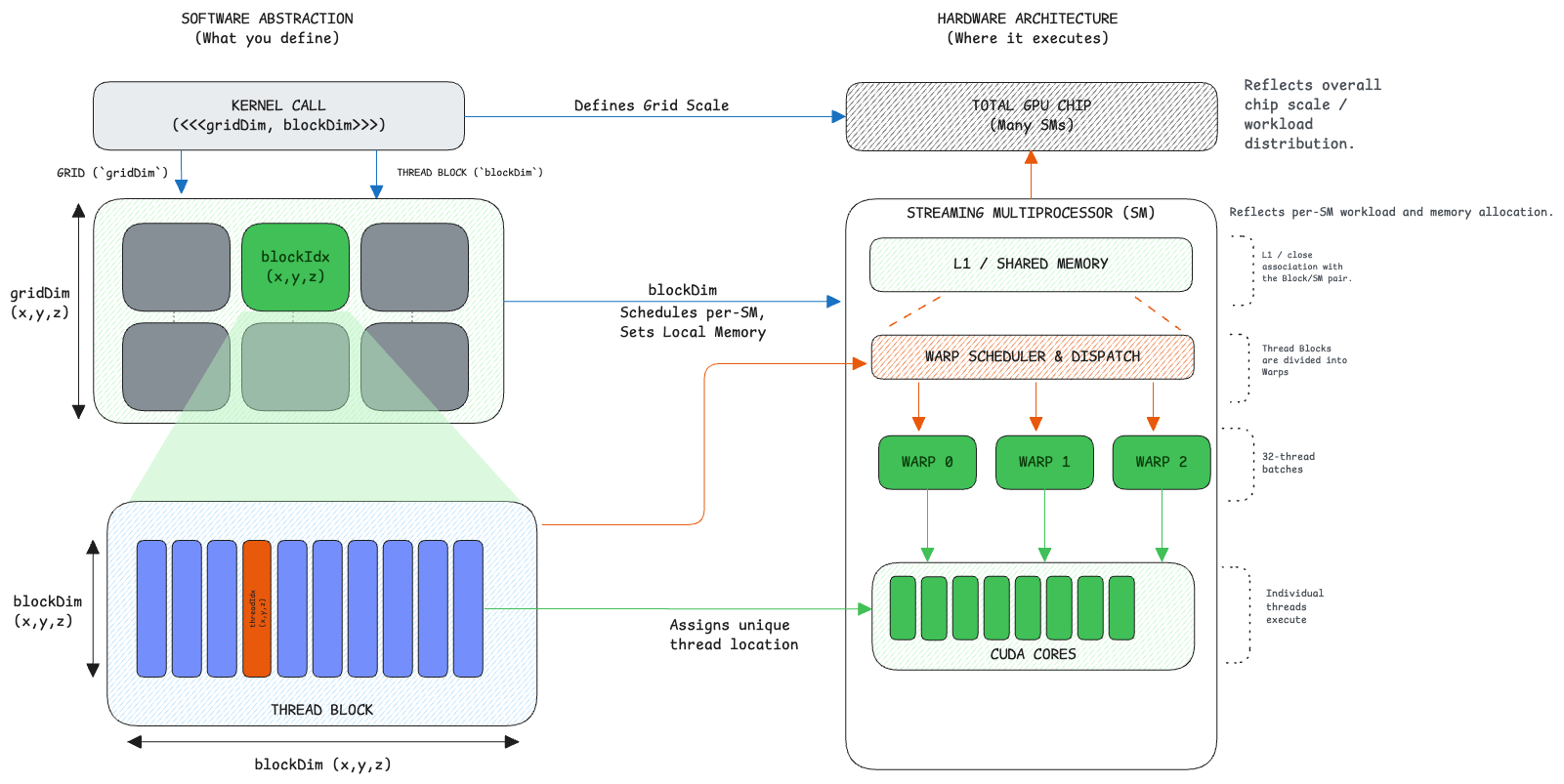

Software Abstraction using GPU Kernels

To understand kernels, it's important to have both software and hardware mental models.

Grid vs Blocks vs Threads

Grid is a collection of many small cubes called threads. Every block is a collection of many smaller cubes called threads.

This is exactly what we define when we write a kernel execution strategy -

naive_matmul<<<blocksPerGrid, threadsPerBlock>>>

Memory Layout of matrices

GPUs deal with matrix multiplications. These matrices aren't just 1D but also 2D or even 3D. The critical mental model is to understand that the memory is just 1D. Therefore, we need to represent multiple dimension data in a 1D array.

Data is continuous

The data is stored in a continuous manner in memory. Every row is just placed one after the other.

This is exactly leads to the formula to get the correct position of an item in a 2D matrix. For matrix with M rows and N columns, a specific item's offset can be found using $row * N + col$.

The line $gid = blockIdx * blockDim + threadIdx$ is the same formula.

idx and dim in examples

All examples includes the terms idx and dim. idx means index and dim means dimension.

Index is the array index and dimension is the actual size of the array.
