Network Devices
Kernel as Router
A Öinux host has just one router. It's this router that handles all namespaces.
Each network namespace has its own routing table. This means, whenever there the packet comes from or to a virtual device on a specific namespace, then it will switch all configuration data of that corresponding namespace and handle accordingly.
It feels like routing happens at container level. But it's actually all happening at host level.
Enable Kernel as router
To enable kernel to act as router, we set parameter net.ipv4.ip_forward=1.
See router definition to understand the background.
When this is set to 0, kernel doesn't do IP packet forwarding and
it can handle only whatever comes to it's own IP address.
C Structure for NIC
net_device is the kernel C structure representing a network device. Both physical and virtual devices are represented using this structure.
For the kernel, any network device is the same and treats exactly the same way. It's only difference comes from who creates it.
How physical and virtual devices created

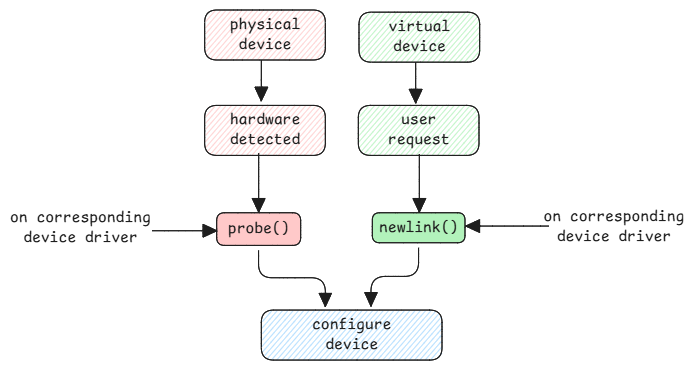

Physical devices are created by device enumeration and configured by kernel using its device drivers.
Similarly virtual devices are added by userspace applications and the kernel then creates the necessary memory structures to represent them.
While creating virtual devices, the term "link" is used because network devices operate at the data link layer (Layer 2) of the OSI model.
Similar to physical devices, virtual devices also need drivers to manage them. So when a virtual device is created, the corresponding driver is also loaded to handle it.
Virtual Ethernet Pair - A virtual wire
When we create a veth pair, it's nothing but connecting two virtual devices virtually. It symbolizes an virtual cable connecting two devices. See also switching page to understand the mental model.
# System call to kernel to create device veth0 of type veth and connect it to peer veth1
ip link add veth0 type veth peer name veth1
Every virtual Ethernet device, the structure contains a peer pointer. The peer pointer points to another virtual Ethernet structure. Whenever there is a send request on the source device, the data is directly copied to the peer buffer memory which simulates the data transfer over a cable.
Similar to how the data is copied from source veth to peer veth, if the peer is connected to a bridge or switch port, the data is copied to the bridge or switch port memory.
This is exactly also how the data moves in case of physical systems.
How multiple IP addresses on the same device work
It doesn't matter how many IP addresses a device has. What matters is, using this IP, the device is part of which network and how the routing rules are setup between these networks.
- If there are multiple IP addresses, the ARP request must respond to all IP addresses with MAC address.
- Once received, kernel will check if there is any process listening on the given IP and the port. If yes, forward data to that process.

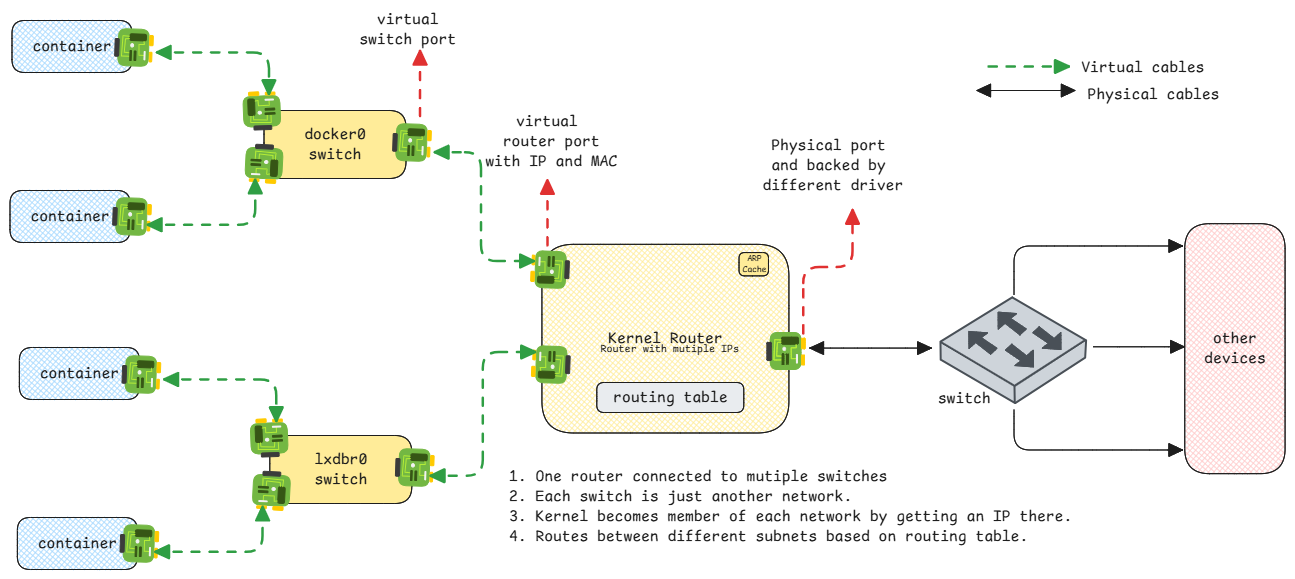

The most important mental model is to understand that on every host, kernel is the main and the only router.
Every other bridge or internal network is simply connected to one of the ports on this router. This is exactly how data flow works in docker networks too. From the container, the data reaches the gateway IP which is on the kernel router. Kernel then uses it's routing table to forward it to physical port.
