Trees

Trees are hierarchical and non-linear data structures.

tree is just a type of graph

Graphs are the parent data structure type. Tree is just a type of graph which has a root node and must be acyclic.

tree is inverted

The most important mental model is to understand that the trees in computer science are inverted compared to real-life trees. The root of the tree is at the top and the leaves are at the bottom.

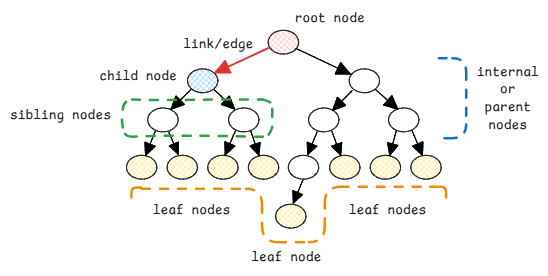

Characteristics of Trees

• Root - This is the top most node of the tree. There can be only one root node in a tree.
• Link/Edge - This is the connection between one node to another node.
• Parent or Internal Node - A node that has a child node.
• Child Node - A node that has a parent node.
• Sibling Nodes - Nodes that share the same parent node.
• Leaf Node - A node that doesn't have any child nodes.

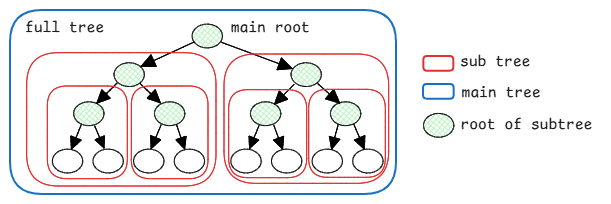

Recursive Nature of Trees

Trees are recursive data structures. Means a tree is made up of smaller trees. So every small tree also has the same characteristics as a big tree mentioned above. This is why every node in the tree is actually a root.

recursive programming

This is exactly why we use recursion to traverse trees. Specially in binary DFS traversals (preorder, inorder, postorder), we recursively work on sub trees until we reach the leaf nodes.

Depth and Height of Trees

• Depth of a node - The number of edges from the root node to that particular node.
• Height of a node - The number of edges on the longest path from that node to a leaf node.
• Height of the tree - The height of the root node.

height is max of children

$\text{Height of a node}=\text{Max height of it's children} + 1$.

We just calculate the height of the children nodes, take the maximum of those heights, and add +1 for the edge connecting from that node to its child.

Just pure recursive calculation.

depth and height mental model

We must consider it by reversing the tree. Then this becomes easier to understand.

So depth is then how deep the node goes until the root and height is how high the node is up to the farthest leaf.

-1 for height of empty tree

Whenever a node has specific sub-tree empty, we consider the height of that empty sub-tree as -1. This is exactly why the leaf nodes have height 0.

A leaf node has no children. So it's -1 each side. $\text{max(-1, -1)} + 1 = 0$.

1 is always added as explained above.

+1 for edge connecting to child

Whenever we calculate the height of a node, we first recursively calculate the height of its children. Then we always add +1 for the edge connecting the node to it's child.

So if a node has a child with height h, then the height of the node itself will be h + 1.

height calculation for leaf nodes

For leaf nodes, since they have no children, their height is 0.

Since both left and right child is null, we consider their heights as max(-1, -1). Then $\text{height of leaf node} = \text{max(-1, -1)} + 1 = 0$.

+1 is just an arbitrary convention

This +1 convention might look a bit confusing at the first time, since we also add +1 for a leaf node which doesn't have any edge connecting to child. But this is the standard convention used in algorithms for defining height of trees.

This makes sense because, we use -1 when no edge connects to child. And recursively, we can use one single formula for all nodes.

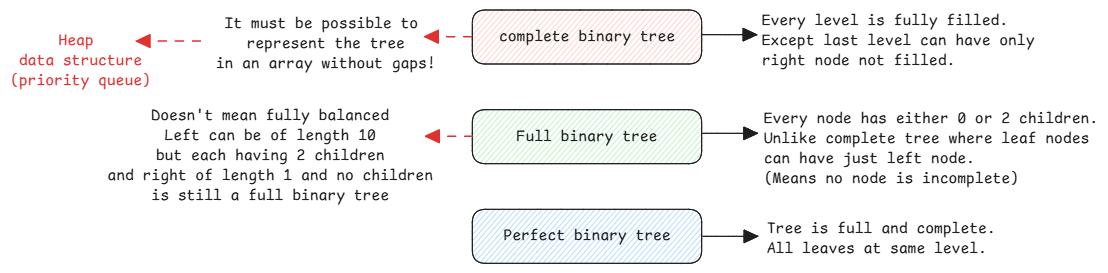

Types of binary trees

mental model to remember

Consider the name full and then we can relate to what a complete binary tree means. Here full means nothing incomplete or partial.

When it's complete, it means there are no any empty spots when we put the tree into an array.

Heaps

This is an interesting and also a confusing one. Only requirement

• Every node will have a value lesser (or greater for max-heap) than it's children.
• Root node will have the smallest value.
• The tree isn't sorted like in the binary search tree.

main use case

Most important use case of heap is when we've to find just the minimum or the maximum value. Nothing else.

This is exactly why it's used in the priority queue data structure.

How heaps are stored?

Heaps just use an array to store its nodes. This is exactly why it needs a complete tree since it can't have empty spots in the array.

Updating the root

The most interesting part of heaps is updating the root. Since it's only use case is to ensure retrieving the max or min value in $O(1)$, once the current value is used up, the next root value must be bubbled up to the root. This happens in $O(log N)$ runtime.

Binary Search Trees

In this data structure, there is nothing about the shape of the tree. It's only about the values each node can hold. The ancestor nodes control and decide what values the descendant nodes can have.

• Left child will have a value lesser than the parent.
• Right child will have a value greater than the parent.

This is the only requirement. This makes it very easy to search for a value in the tree.

one side will have equal to condition

Depending on the implementation, one side of the tree will have value equal to the parent node.

As we can see in the above image, the right side always has by default a minimum value limit and the left side always has by default a maximum value limit.

No tree shape requirement

Even if a tree has just right or left children for any number of levels, it's still a valid tree as long as the values follow the binary search tree rules.
