Device Manager

Device managers in Linux isn't similar to Windows where we've one single tool that manages all devices. In Linux, there are different tools that manages different types of devices. Some handle block devices, some handle USB devices, some handle PCI devices, etc. Here we see how devices are represented in the kernel, how they're registered, and how userspace interacts with them.

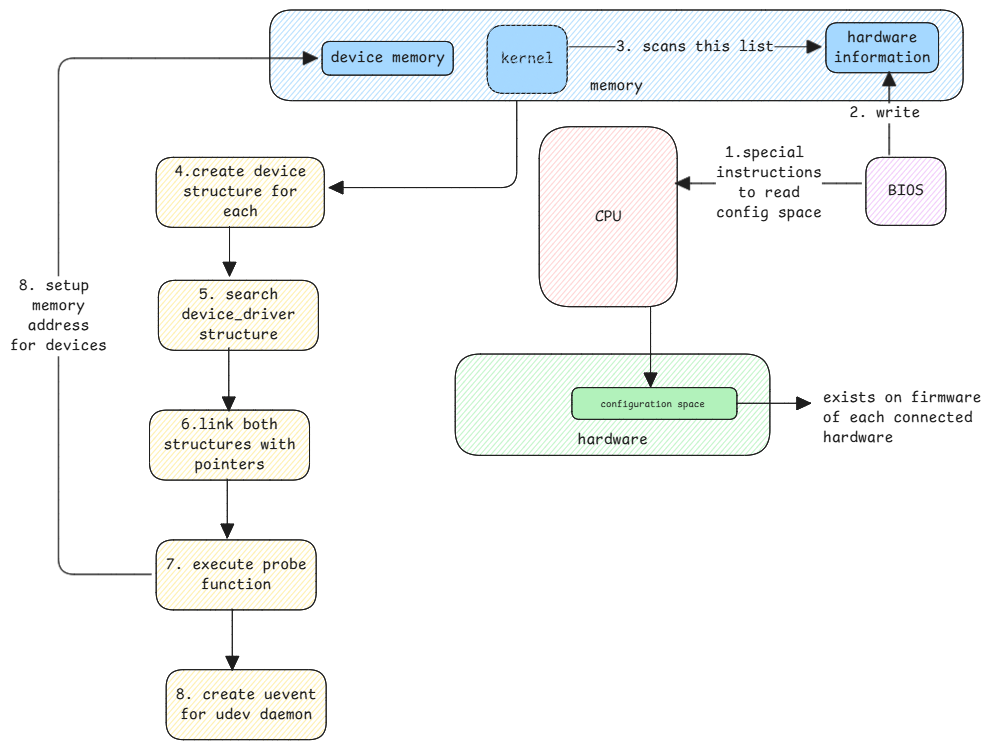

Software Representation

1. struct device - This is the core structure that represents a device in the Linux kernel.
2. struct device_driver - This structure represents a driver that can handle a specific type

link between device and driver

both these structures are linked together using a struct device_driver pointer in the struct device and vice versa.

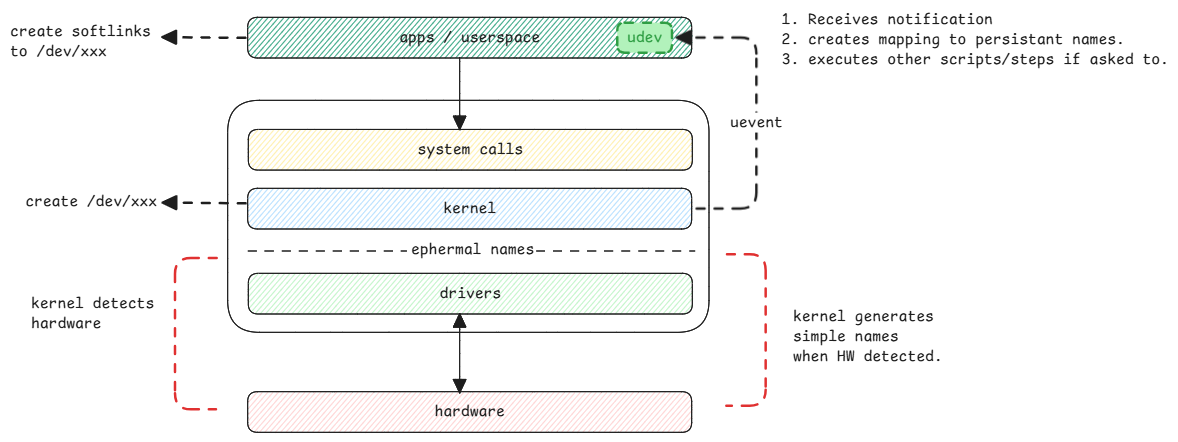

udev

udev is short form for userspace device manager. It defines the following for each device.

It configures the device in the userspace and let's userspace applications interact with the device. It additionally executes whatever steps needed to be done when a device is added or removed.

example of udev task

1. When a printer is added, udev can be configured to execute scripts which will automatically add this printer to the printer list.
2. Pop-up notification when a USB device is added.
3. Network configuration scripts such as DHCP in case of sockets.

Ephemeral vs Persistent Namings

Kernel uses ephemeral names for devices, which aren't persistent across reboots. It gives names in the sequence the BIOS has detected the devices.

But these are simple names for kernel to handle, whereas userspace applications need persistent names to identify devices across reboots. This is where udev comes into picture.

in-built versus external drivers

When a driver isn't part of the kernel itself, but is loaded as a module. Where as external drivers are loaded as modules.

Loading Persistent Information

In case of a disk, the UUID is read from the disk and used as the persistent name. In case of a network interface, the MAC address is used as the persistent name.

For other devices, hardware information such as vendor ID, product ID, and serial number are used to create a unique identifier.

These values remain same across reboots and are used to identify the device in the userspace. This is then mapped to the ephemeral name given by the kernel in the uevent message.

All userspace applications use this persistent name to identify the device.

/dev is a temporary filesystem

It's important to note that /dev is a temporary filesystem, which means that the devices listed in /dev aren't persistent across reboots. Each time the system boots, the devices are re-detected and the /dev directory is recreated with the current devices.

But it's important to know that udev ensures the userspace names of devices are kept consistent across reboots.
